Samples of Vector Cut Files for Laser Engraving & Cutting
Conversion to vector art for laser engraving and cutting includes line art or black shapes only, line thickness specifies if the files are for sandblasting, laser engraving, cutting or etching, shading means a area where it is not to be cut, thin lines are for cutting and etching and thick lines for sandblasting. Here are some examples of these conversion:
Big enough in width and height, dxf plasma cut file created for client from real image to dxf vector art file for cutting on metal. Dxf file as per client needs for using on plasma cutting table.
Vector redraw from real photo for using on glass for etching or engraving. Vector art shows clean art redraw showing all the details.
Converted to cut and engraving on wood for creating custom jewellery based products.

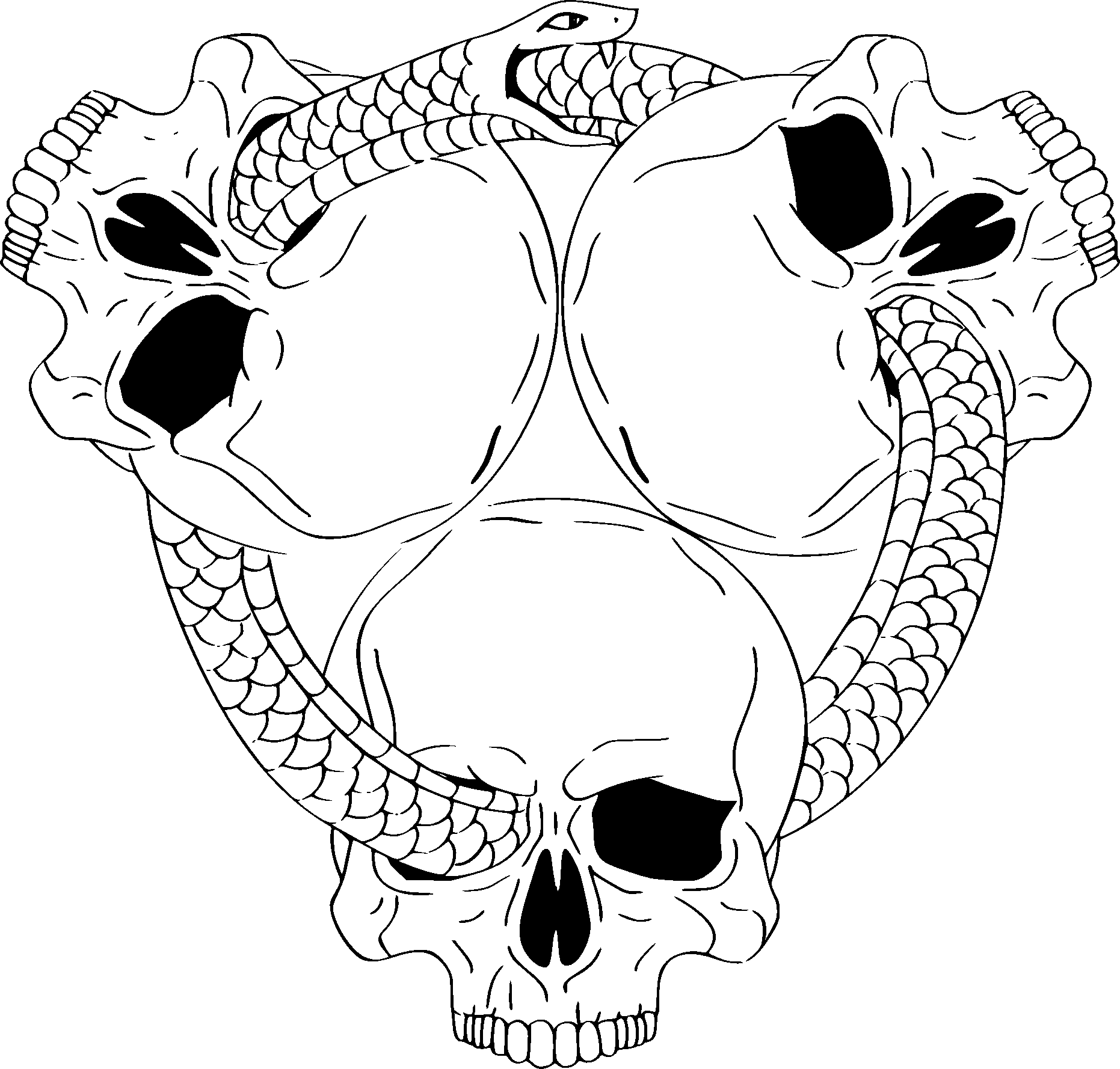

Line art created for engraving and cutting while making sure paths are not open.

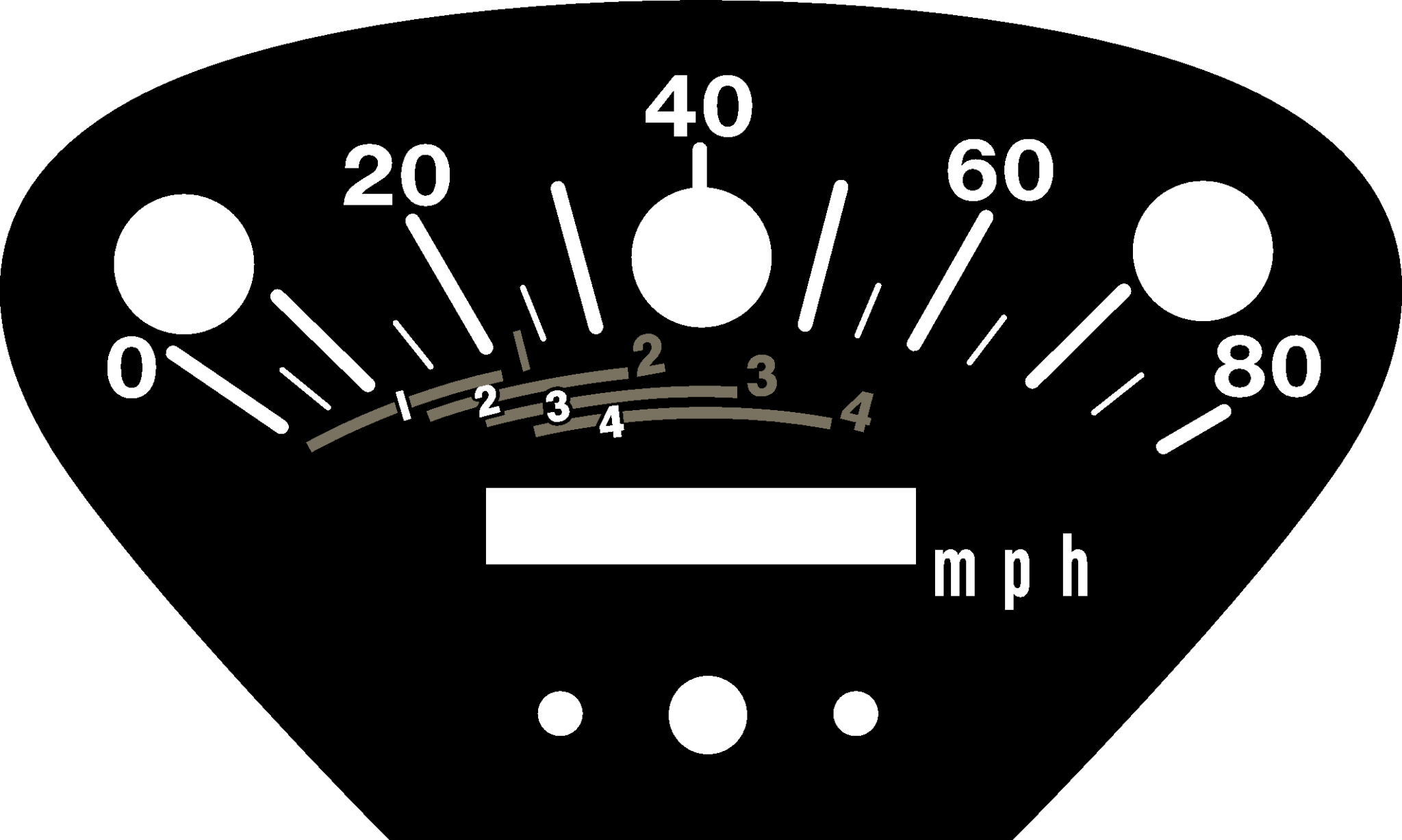

Laser cutting and engraving file created for screen display for motor bike.

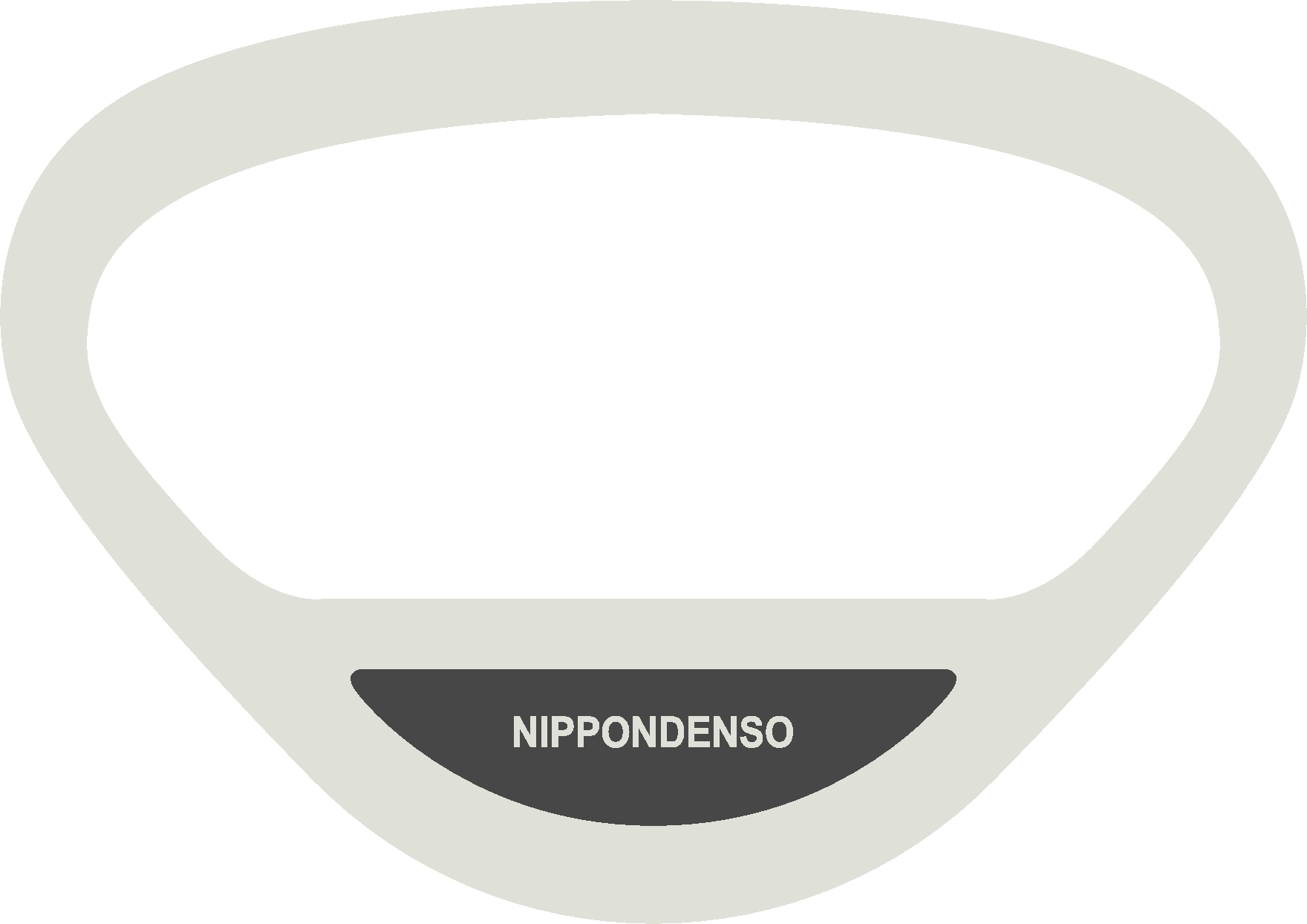

Outer design cut file for motor bike parts, perfect layout as per client needs and requirements.

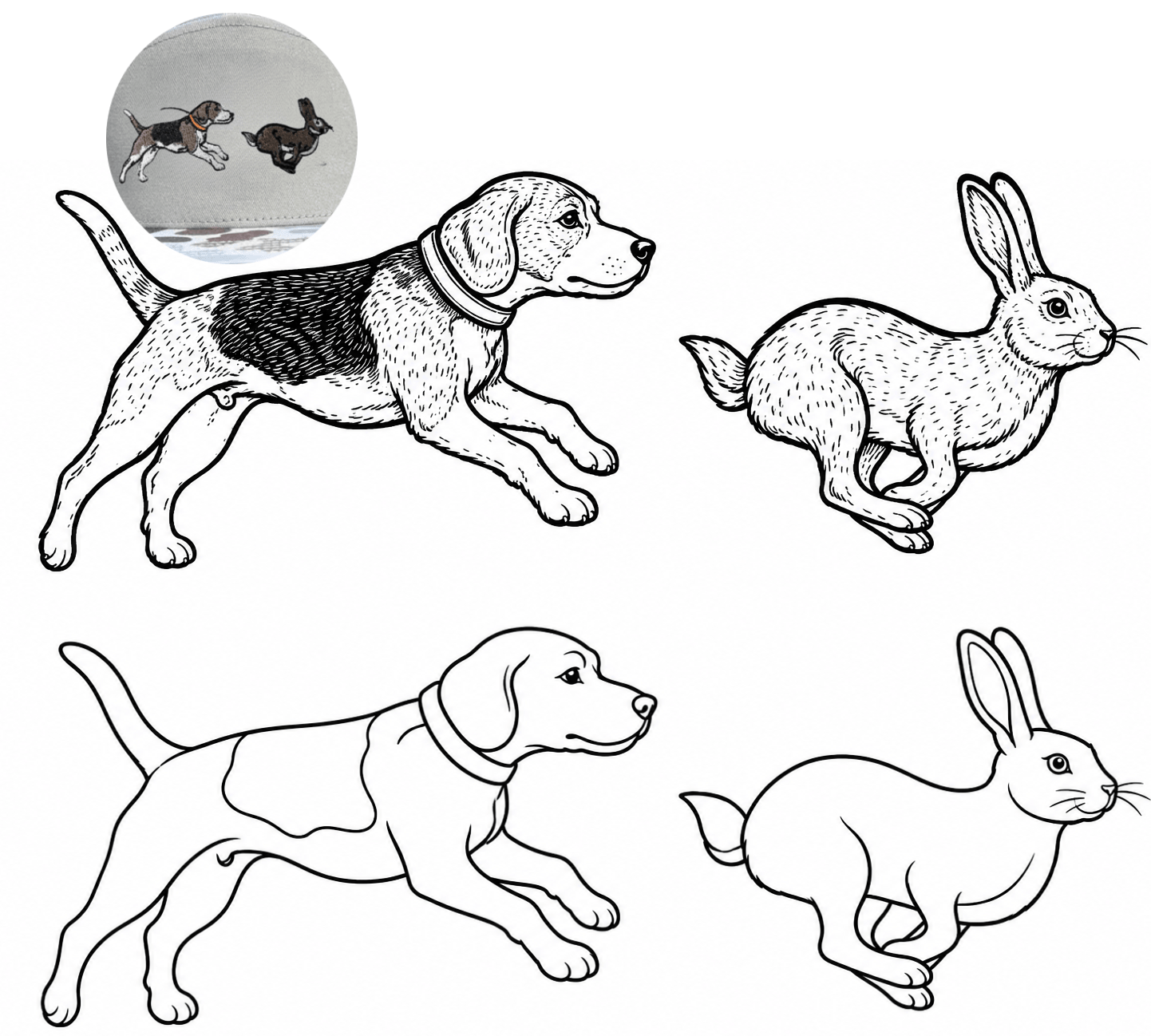

Two versions of same dog for different applications, first version shows some shading and details for sandblasting engraving, 2nd line art of a dog with minimum line thickness, suitable for engraving. This art is created from embroidery sew out scan file. The art with shading can be used for sandblasting engraving and clean line art for engraving.

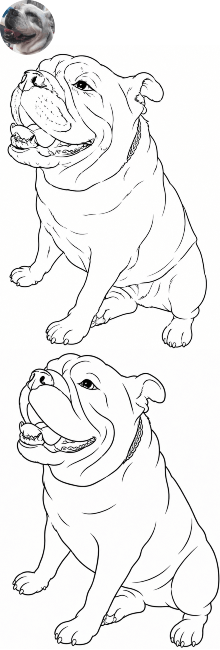

Vector drawing of a dog for engraving, one with very few shading areas of black, and another is clean vector art with black lines.

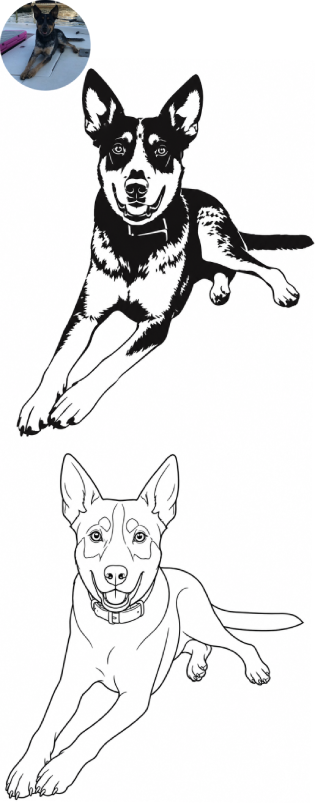

Vector redraw of real dog image with black shading area, for sandblasting engraving as well as CNC Cutting, also one more version with clean line art for engraving.

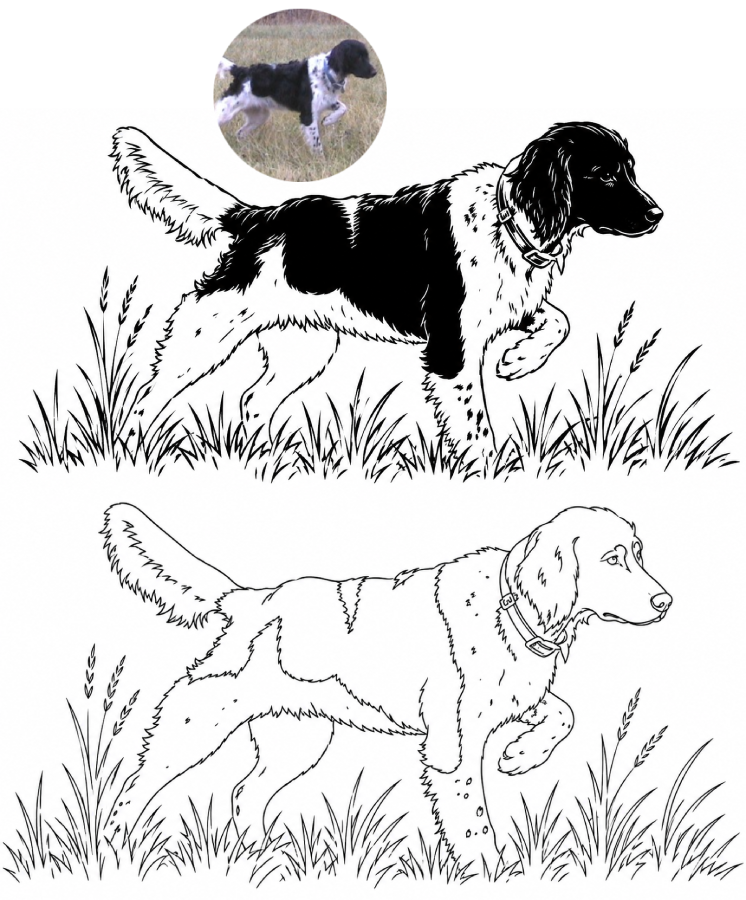

Vector redraw to show grass and dog details for sandblasting in first version and 2nd version for engraving.
